S2PI-B1-ME

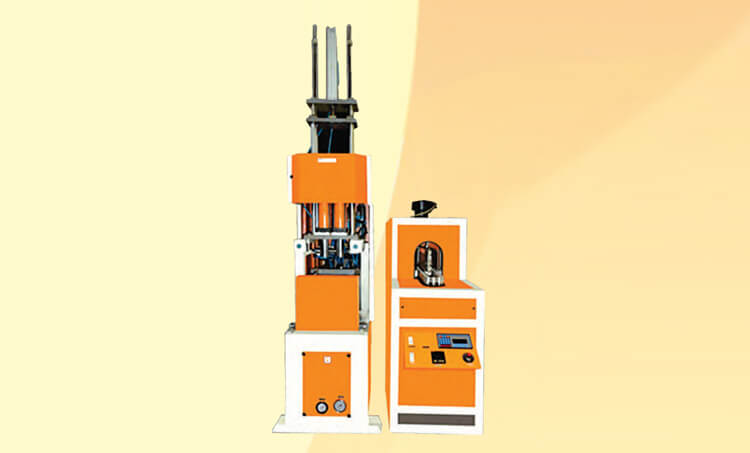

  1. SEMI AUTOMATIC PET BLOW MOULDING MACHINE
  • B1ME offers variety shapes of Bottle which are widely used in packing of several products such as Drinking Water, Honey, Edible Oil, Liquor, Shampoo, Aromatic Oil, Creams, Cosmetic, Soda and other Hygiene Products.
  • B1ME manufactures 900-1000 bottles per hour and offers a range from 30ml to 1 litre
  • In case of sudden Power failure, Machine is equipped with stand by UPS system to run conveyor and electronic PLC for minimum 15 minutes. This function saves PLC from getting damaged due to power failure / fluctuation. Also the Preforms which are already in the heater can be blown till the time air is available in compressor thereby reducing the wastage of preforms

 Specification Unit S2PI-B1-ME
 Product Capacity ml 30 to 1000
 Neck Dia mm 19 to 30
 Max. Product Dia mm 80
 Max. Product Height mm 300
 Production Capacity Bottle/Hr. 900 to 1000
 Cavity no 2
 Operating Pressure Kg 8 to 9
 Blowing Pressure Kg 20 to 25
 Heater Power Kw 6
 Running Power Consumption Kw 4 to 5
 Clamping Stroke mm 150
 Mould Platten Size mm 375X310X30
 Dist. Between  Tie Bar  mm 250
 Cavity Centre Distance mm 100
 Clamping Force ton 6
 Max.Mould  Thickness mm 150
 Min.Mould  Thickness mm 140
 Air Requirement cfm 37 to 42

“ In our endeavor to improve quality, product specifications and look may change without prior notice”
