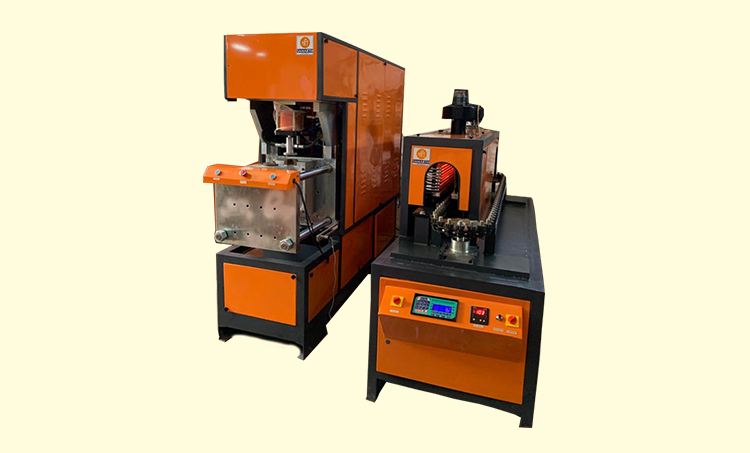

J5-ME

J5ME offers variety shapes of jars that are used to store different food items like Pickles, Cereal, Water, Toys and other Food Grains. These Jars are strong but light in weight.
J5ME manufacturers 350-400 Jars per hour of varied storage capacities ranging from 500ml to 5 litre
Machine offers a wide range of Jars with 25-130mm neck diameter. Machine is equipped with latest techniques and designed according to modern demand to enhance its quality and durability
Customers can avail moulds in various designs, sizes as per the market needs.

Specification	Unit	J5-ME
Product Capacity BOTTLE	ml	30 to 2000
Neck Dia	mm	25 to 30
Production (28mm - 1Ltr)	bph	600 to 650
Product Capacity JAR	ml	100 to 2000
Neck Dia	mm	38 to 96
Production (83mm - 1Ltr)	jph	500 to 600
Product Capacity JAR	ml	250 to 5000
Neck Dia	mm	46 to 120
Production	jph	400 to 450
Cavity for BOTTLE upto 2ltr	mm	250
Cavity for JAR upto 1kg-96mm	no	2
Cavity for JAR 96mm & above	no	1
Max. Product Height	mm	350
Air Requirement	kg/cfm	26-30 / 40-50
No of Neck Holders	mm	76
Blowing Pressure	kg	25 to 30
Operating Pressure	kg / bar	8 to 9
Heater Power	kW	14
Running Power Consumption	kW	8 to 10
Clamping Stroke	mm	250
Mould Platen Size	mm	535X340X38
Dist. Between Tie Bar	mm	420
Cavity Centre Distance	mm	150
Clamping Force	mt	10
Max. Mould Thickness	mm	225
Min. Mould Thickness	mm	180
Dimension of Main Blower-LWH	mm	1980x610x3040mm
Dimension of Preheater-LWH	mm	2133x914x1829mm
Weight of Main blower	kg	680
Weight of Preheater	kg	425

“ In our endeavor to improve quality, product specifications and look may change without prior notice”
