India

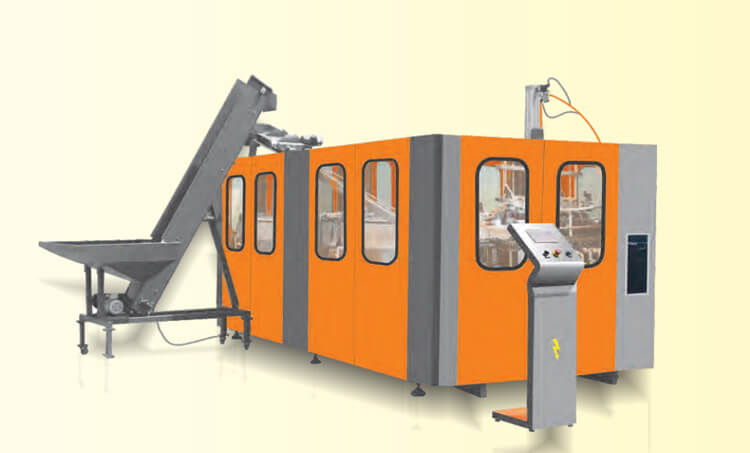

- FA4C-FYP manufactures PET bottles & jars, which are being used for Mineral Water, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and Confectioneries.
- Production Capacity 3800 to 4000 bottles / hour for 19mm - 30mm neck diameter size.
- Unique Bottle Auto Clipper is used for online filling system and bottle ejection. Machine is equipped with FESTO Operating Valves, NORGREN Blowing valves, Yuken Hydraulic Motor Pack and TRITEK Touch Screen- Programmable Logic controller (PLC).
- Fully electrical automatic preform loader & Touchscreen HMI (Display) provided for easy operation. Hydraulic clamping with 15 HP motor enables adjustment of mould opening dimension according to the product volume.
| Specification | Unit | FA4C-FYP |
| Product Capacity | ml | 30 to 2000 |
| Neck Dia | mm | 19 to 30 |
| Max. Product Dia | mm | 100 |
| Max. Product Height | mm | 340 |
| Production Capacity | Bottle/Hr | 3800 to 4000 |
| Max. Blow Height | mm | 340 |
| Cavity | no | 4 |
| Operating Pressure | Kg | 8 to 9 |
| Blowing Pressure | Kg | 25 - 32 |
| Heater Power | Kw | 48 |
| Clamping Stroke | mm | 200 |
| Clamping Force | ton | 20 |
| Max.Mould Thickness | mm | 200 |
| Min.Mould Thickness | mm | 150 |
| Cavity Centre Distance | mm | 130 |
| Air Requirement | cfm | 160 - 180 |
“ In our endeavor to improve quality, product specifications and look may change without prior notice”
